3D Sensor Series in comparison

This table should help you to compare the technical specifications and properties of our 3D sensors at a glance.

Series
Eco-Serie

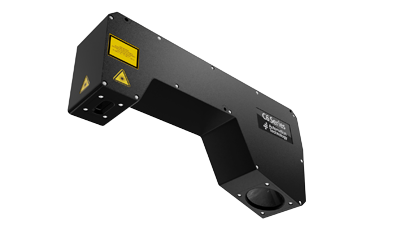

ECS Series
Eco 3D Sensors
Eco-Serie

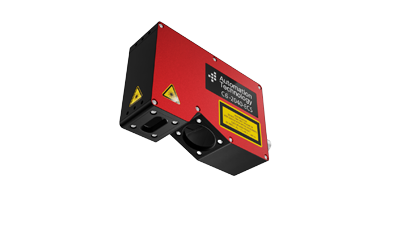

CS Series
High-Performance 3D Sensors
Eco-Serie

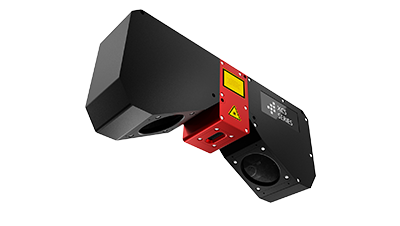

XCS Series
High-Precision 3D Sensors
Eco-Serie

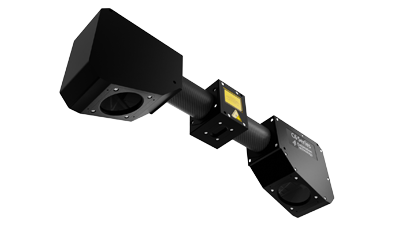

MCS Series
Modular 3D Sensors
Resolution 2048 1280 / 2048 / 3072 / 4096 3072 / 4096 1280 / 2048 / 3072 / 4096
Speed Max. 25 kHz Max. WARP Speed (*) 140 kHz Max. WARP Speed (*) 140 kHz Max. WARP Speed (*) 140 kHz
Field of View (FoV) and Working Distance Selected field of views (FoVs): 100 / 160 mm Large selection of field of views (FoVs) from 7 to 1300 mm Selected field of views (FoVs): 48 / 53 mm Individually configurable
Dual head
Flexible Configuration
Laser
  • Class 2M
  • Red wavelength (660 nm)
  • Classes 2M, 3R, 3B
  • Available in different laser classes from 2M to High-Power
  • Red (660 nm) + blue wavelengths (405 nm, 450 nm)
  • Selected precision lasers with reduced sidelobes for optimized beam quality and intensity correction
  • Classes 3R
  • Red (660 nm) + blue wavelengths (405 nm, 450 nm)
  • Selected precision lasers with reduced sidelobes for optimized beam quality and intensity correction
  • Classes 2M, 3R, 3B
  • Available in different laser classes from 2M to High-Power
  • Red (660 nm) + blue wavelengths (405 nm, 450 nm)
  • Selected precision lasers with reduced sidelobes for optimized beam quality and intensity correction
Calibration
  • Automated AT calibration
  • Automated AT calibration with individual precision calibration
  • Automated AT calibration with individual precision calibration
  • Automated AT calibration with individual precision calibration
Protection Class
  • IP54
  • IP67
  • IP67
  • IP67
Innovative AT Software & 3rd Party Integration
Application Recommendation
  • Food & Beverage
  • Logistics & Packaging
  • Robot Vision
  • Electronics & Semicon
  • eMobility & Battery
  • Automotive Metrology
  • Industrial Automation
  • Welding
  • Pharma
  • Wood & Lumber
  • Electronics & Semicon
  • eMobility & Battery
  • Automotive
  • Metrology
  • Industrial Automation
  • Transportation
  • Iron & Steel
  • Pharma
  • Sorting & Recycling
  • Electronics & Semicon
  • eMobility & Battery
  • Automotive
  • Metrology
  • Industrial Automation
  • Transportation
  • Iron & Steel
  • Pharma
  • Sorting & Recycling
Guarantee 12 months 24 months ** (**except laser) 24 months ** (**except laser) 24 months ** (**except laser)
