The World’s Fastest 3D Laser Profile Sensors

We offer the fastest 3D laser profile sensors worldwide in terms of resolution and speed. The advantages include a specially developed sensor chip and WARP technology resulting in the world’s fastest 3D profiling.

Exclusive imager design
Latest industry standards GigE Vision / GenICam 3D
3D profile pixel rate up to 128 megapixel/s
Internal processing rate up to 29 gigapixel/s
Unique features such as MultiPart and MultiPeak

Request Demo / Price

Brochure

3D point data rate up to

128 M/s

Profile speed up to

140 kHz

Resolution up to

4.096 px

Protection class

IP67

Laser Profiler

Request Demo / Price

Overview

3D Laser Profile Sensors

The 3D series by AT are built on a novel sensor platform that supports the latest industrial standard GigE Vision/GenICam 3D/ NBASE-T at up to 5 Gbit/s. These new laser profilers offer an impressive combination of extremely fast and highly precise resolution, reaching up to 4,096 points per profile, a profile speed of up to 140 kHz, and high dynamic range 3D image capture. They are available as compact sensors, MCS, and 3D cameras.

Accessories

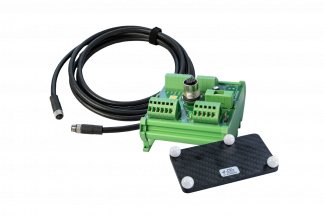

Accessories for 3D Laser Profile Sensors

View & Buy

3D Laser Profile Sensors in comparison

Product Finder

The Fastest Way to Your Perfect 3D Laser Profile Sensor

Our interactive product table allows you to quickly and easily find the right 3D laser profile sensor for your application.

Find the Right 3D Laser Profile Sensor Now

C6 3070

The Best 3D Sensor Chip

Warp Speed

Galactical Speed

The Widely Advanced Rapid Profiling (WARP) Technology by AT enables unprecedented profile speeds of up to 140 kHz to date.

On-Sensor Chip Processing

Focus on Relevant Data Transmission

Thanks to the self-developed sensor chip and revolutionary on-sensor chip processing, only the essential data is transmitted during a 3D scan. With this new technology, AT enables up to ten times higher measurement speeds.

MultiPart

Simultaneous Output of Multiple Data Sets

With the help of MultiPart, it is possible to output up to ten different data sets simultaneously, regardless of the pixel format or algorithm. In addition to height data, the customer receives additional data such as reflectance or scatter, which, in addition to an existing simple point cloud, for example, allows for a photorealistic representation of the test object.

MultiPeak

Disturbance-Free Scans of Reflective Materials

Thanks to MultiPeak, it is now possible to obtain distortion-free 3D profile data scans using laser triangulation. Highly reflective materials such as metal, plastic, or glass can be scanned without any interference from reflections. In cases where multiple laser reflections occur on the test surface, the MultiPeak feature helps distinguish them and output up to four profiles with peak data separately.

REGION SEARCH UND REGION TRACKING

Secure Detection and Classification of the Laser Line

With the help of AT’s specially developed features, Region Search and Region Tracking, it is possible to reliably locate and determine the laser line as well as dynamically track and evaluate it as just one example of the wide range of capabilities our sensors have to offer. This enables a significant increase in scan speed while simultaneously utilizing the entire scanning height.

INTELLIGENT ALGORITHMS

Reliable Definition of the Laser Line Profile

AT has developed several intelligent algorithms that can output the 3D height profile of a measurement object. The algorithms determine the position of the laser line during the 3D scan, enabling the precise capture of the 3D profile.

Application Options

Used across industries for innovative applications

Robot Guidance

Determining object positions in production lines.

Metrology

Calculation of size, shape, and volume.

Surface Inspection

Detection of defects and material flaws.

Beispiele für Applikationen

Technical Data

General Technical Data

High Dynamic Range Features:	Multiple Slope Mode
3D Algorithms:	MAX, TRSH, COG, FIR PEAK*
3D Scan Features:	Automatic Region Tracking, Automatic Region Search, Multiple Regions*, AutoStart
Connections	17 pin, M12 Power I/O 8pin, M12 Ethernet
Data Interface	Gigabit Ethernet (1Gbit/s)
Standards	GigE Vision with GenICam
Temperature	Operation 0°C to +40°C Storage -20°C to +80°C
Protection Class	IP67

(*) Availability of feature might vary with type of sensor

Electrical Specifications

Power Consumption	max. 15 W
Power Supply Sensor	10-24 V DC (max. 27 V DC)
Power Supply Laser	10-24 V DC

I/O Specifications

Digital Input:	2 electrial isolated inputs, +5V to +24V DC
Digital Output:	2 electrical isolated outputs, +5 to +24V DC (max. 100 mA)
Encoder/Resolver Input:	A+, A-, B+, B-, Z+, Z-
	High-Speed Triple RS-422 Receiver
	Max. input voltage +5V DC (TTL level)

Sensors in comparison

	C6-1280	C6-2040	C6-3070	C6-3070W	C6-4090
Sensor type	CMOS
Shutter type	Global shutter
Resolution (H xV)	1280 x 1024 Pixel	2048 x 1088 Pixel	3072 x 1020 Pixel	3072 x 1020 Pixel	4096 x 3072 Pixel
Pixel size	6.6 µm x 6.6 µm	5.5 µm x 5.5 µm	6.6 µm x 6.6 µm	6.6 µm x 6.6 µm	5.5 µm x 5.5 µm
Sensor size	8,448 mm x 6,758 mm	11,264 mm x 5,984 mm	20,275 mm x 6,632 mm	20,275 mm x 6,732 mm	22,528 mm x 16,896 mm
Image circle	10,82 mm	12,75 mm	21,37 mm	21,37 mm	28,16 mm
Sensor format	2/3″	2/3″	1,5″	1,5″	1,75″
Power consumption	max. 15 W
ADC resolution	12 bit	10 bit	10 bit	10 bit	10 bit
Extended dynamic range	Up to 90 dB with activated Multi Slope Mode
Scan 3D extraction process	MAX, TRSH, COG, FIR PEAK*
High dynamic range imaging	Multi Slope Mode
3D features	Multipeak, Multipart, Multiple Regions*, Region Tracking/Search, Autostart

(*) Not available for C6-3070W

Typical Profile Speed Depending on Number of Sensor Rows (Hz)*

	Sensor Rows	With 1280 pixel profile width	With 688 pixel profile width	Sensor Rows		Sensor Rows		Sensor Rows		Sensor Rows
*Internal values. The actual usable profile speed may be limited by the 1 Gbit/s interface.	C6-1280			C6-2040		C6-3070		C6-3070W		C6-4090
	4	121130	172744	4	43478	6	66489	6	204918	4	24875
	8	84034	128388	8	18604	12	47846	12	176678	8	20352
	16	52114	84825	16	13289	24	30656	24	138504	16	14925
	32	29615	50533	32	8456	48	17838	48	96712	32	9733
	64	15893	27941	64	4895	96	9714	96	60314	64	5740
	128	8249	14751	128	2657	192	5083	192	34412	128	3153
	256	4204	7587	256	1388	384	2602	384	18512	256	1658
	512	2123	3849	512	710	768	1317	768	9621	512	851
	1024	1067	1938	1088	338	1020	994	1020	7315	1024	431
										3072	145

FAQ

What does a 3D laser profile sensor cost?

The costs naturally depend on the application and level of customization, but our 3D laser profile sensors start at a price of $4,200.

How do I configure my specific MCS?

Our sales team has a dedicated configurator for your specifications, allowing us to set it up together and generate the corresponding datasheet for you directly.

What is the warranty duration?

24 months

Who can I contact in case of support issues?

You have the option to access current documentation and software tools through our product support page. Alternatively, you can also contact our support team directly by phone or email.

How do I integrate the 3D laser profile sensor into my application?

For this purpose, we provide our customers with our AT SolutionPackage, which includes SDKs and examples for integration into all common image processing systems.

What software is included with the 3D laser profile sensor?

Included in our AT SolutionPackage, are tools such as cxExplorer, cxShow3D in addition to cxSDK and application solutions like our cxMetrologyExplorer tools.

How do I know which 3D laser profile sensor is right for my application?

With our 25 years of expertise as component manufacturers in the field of 3D image processing, we have comprehensive knowledge in 3D laser triangulation sensor applications. Therefore, we can offer you optimal advice on which 3D laser profile sensor is best for your application. Feel free to reach out to our sales team with confidence: [email protected].
