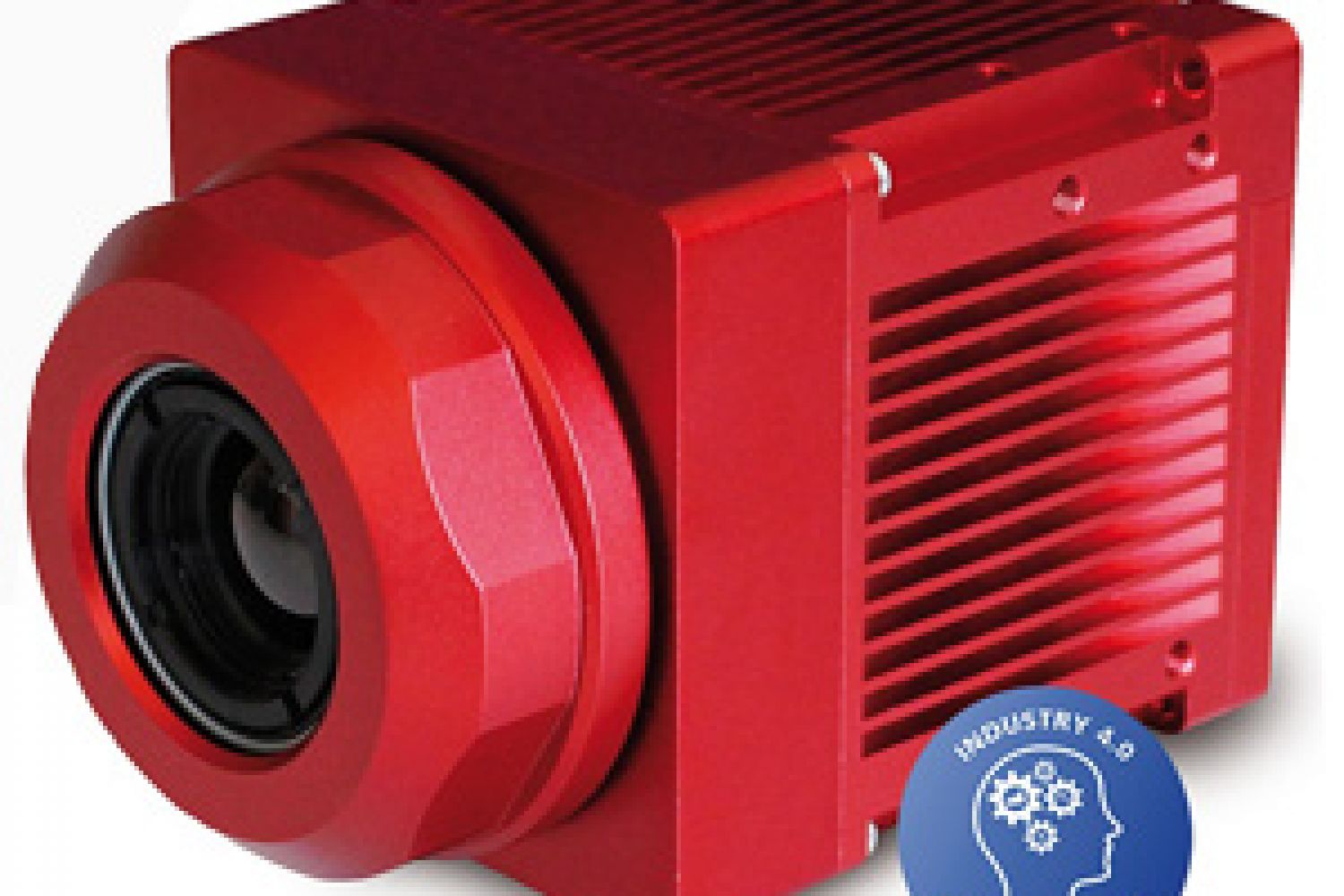

[vc_column width=”2/3″]With its IRSX smart infrared camera series, the North German technology company AT – Automation Technology from Bad Oldesloe near Hamburg has caused an international sensation. The reason for this is the unique concept of this smart infrared camera as a high-precision stand-alone solution, which can be used across all industries as an optimal temperature control in every branch of industry. Neither additional hardware nor software is required for this; the camera has an app concept similar to that of a smartphone, so that any number of apps and jobs can be stored on the IRSX, between which the customer can switch back and forth flexibly. The camera’s smart technology enables complete processing of the temperature data including target/actual comparison based on the app within the camera, while communication takes place independently through the Internet of Things (IoT) with other devices via numerous integrated interfaces such as Modbus, REST API/OpenAPI or LUA Scripting. The following application examples show why the IRSX is a true industrial all-rounder and how it can maximize production efficiency.[vc_column width=”1/3″][sc_image position=”centered” disable_lightbox=”1″ src=”/8590″]
[vc_column width=”2/3″]
In the automotive sector, more and more vehicle parts are being made of plastic and joined together by infrared or hot gas welding processes. In order to guarantee a consistently high product quality, appropriate target temperatures must be reached during the welding process, otherwise the weld seam will not have the necessary strength. The IRSX smart infrared camera from AT is the ideal tool for monitoring the temperature curve along the entire weld seam directly after the heating process. It is integrated into the welding machine and impresses with its special functions for faultless temperature measurement on the narrow welding ribs. In this case, the camera then communicates directly with the machine controller and the welding machine manufacturer can design the visualization and data management according to his own ideas. The advantages: Minimizing costs by reducing scrap and increasing profitability by ensuring optimum product quality.[vc_column width=”1/3″][sc_image position=”centered” disable_lightbox=”1″ src=”/8577″][vc_column width=”2/3″]
In the automotive industry, press hardening is an innovative process for the production of extremely strong, crash-relevant components such as A- and Bpillars or bumpers. In this process, the sheet metal parts are partially heated to up to 900 degrees and then rapidly cooled again during the pressing process, giving parts of the sheet metal particularly high strength. The particular challenge in this process, however, is the different temperature distribution, as most components are not intended to remain solid throughout but also elastic in some places. For this reason, the temperature of the sheet must be measured and evaluated both before the forming process and afterwards in order to be able to guarantee the mechanical properties of the component. Incidentally, AT is currently the only company in the world to offer this measurement based on a smart infrared camera. The advantages: reliable evaluation of the temperature distribution in a range of up to 1000 degrees both before and after the pressing process, automatic value transmission of the temperature data to the process control system without additional hardware and software thanks to the smart technology of the IRSX.[vc_column width=”1/3″][sc_image position=”centered” disable_lightbox=”1″ src=”/8579″]
[vc_column width=”2/3″]
在工業生產過程中，若產生有毒、易燃氣體且必須進行燃燒處理時，火炬上始終需要一簇持續燃燒的引火火焰。
此舉可防止氣體未经處理直接排放至大氣中。為了控制引火火焰的持續運作，可採用 AT 公司的 IRSX 智慧型紅外線攝影機，以確保其具備故障安全且持續運作的能力。 此外，IRSX 可直接與製程控制系統通訊，無需額外硬體或軟體即可極其輕鬆地進行整合。其優勢包括：全天候監控引火火焰，即使在雨天、霧天等惡劣天氣條件下，乃至在黑暗環境中，IRSX 仍能正常運作。[vc_column width=”1/3″][sc_image position=”centered” disable_lightbox=”1″ src=”/8581″][vc_column width=”2/3″]
在煉油廠等工業設施中，關鍵的溫度變化可能導致致命後果。單一設備組件的故障
不僅會導致生產停擺，進而造成高昂的停機成本，若生產過程涉及汽油等高度易燃液體，更可能危及人員安全。因此，煉油廠採用 AT IRSX 智慧型紅外線攝影機進行持續的熱成像分析，以便將潛在的熱點立即通報給製程控制系統。 優勢：透過開發專用的防爆外殼 IRCamSafe EX，使 IRSX 亦能應用於爆炸性環境；並可藉由熱成像分析，優化生產流程與廠區利用率。[vc_column width=”1/3″][sc_image position=”centered” disable_lightbox=”1″ src=”/8583″]
[vc_column width=”2/3″]
With its IRSX smart infrared cameras, AT is currently making progress in Central and South America as well as in Asia, enabling large power utilities to monitor their substations with the help of an application for largescale temperature monitoring. Unlike in Germany, the the transformers in the power grids there are less reliable, so there is a permanent risk of system failure (blackout) or fire development. If there is a deviation from the previously defined temperature limits, AT’s IRSX smart infrared camera directly sends an alarm as well as the corresponding temperature values and image. The advantages: Networking of the individual IRSX smart infrared cameras with each other and evaluation at a central location, possibility to have access to all substations via the web interface at any time, timely prevention of the emergency by taking all necessary measures.[vc_column width=”1/3″][sc_image position=”centered” disable_lightbox=”1″ src=”/8587″]
[vc_column width=”2/3″]
PCBs, short for Printed Circuit Boards, are printed circuit boards that are nowadays installed in every electronic device such as cell phones, radios or laptops. In order to meet the high demands of technical quality and to be sure of the functionality of the electrical components with which the PCB is equipped, reliable quality assurance is required. This can be guaranteed if the temperature distribution of the components corresponds exactly to the predefined standard values as soon as electricity starts to flow. AT, with the help of its IRSX smart infrared camera, makes it possible to detect even small component defects by the thermal signature they produce. If extremely small areas need to be inspected, the IRSX can also be equipped with microscope optics. The advantages: efficient production of PCBs by timely sorting out of dysfunctional products, reliable measurement results due to high-precision inspection capability of the IRSX, low effort due to the integrated functions of the IRSX.[vc_column width=”1/3″][sc_image position=”centered” disable_lightbox=”1″ src=”/8585″]
